20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V

Brand Name : FANBAO

Model Number : K KA KF KAF

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : 8-15work days

Packaging Details : standard export wooden case

Gearing Arrangement : Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V

Output Torque : 50000N.m

Input Speed : 600~1800rpm

Output Speed : 14-280rpm

Weight (KG) : 80kg

Warranty : 1 year

Color : customer Requirement

Ratio : 7.5~100

Size : K KA KF KAF KAZ KAT KAB

Efficiency : over 95%

Gear material : 20CrMnTi

Housing material : HT250 high-strength cast iron

Input ways : Motor input, AM (IEC) flange input, and shaft input

output way : solid shaft output or hollow shaft output

Contact Now

Hard Face Helical Gear Reducer Bevel Gearmotor Gearbox Parallel Shaft K97 Series 380V
Product Specifications
Attribute Value
Gearing Arrangement Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 14-280rpm
Weight 80kg
Warranty 1 year
Color Customer Requirement
Ratio 7.5~100
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear Material 20CrMnTi
Housing Material HT250 high-strength cast iron
Input Ways Motor input, AM (IEC) flange input, and shaft input
Output Way Solid shaft output or hollow shaft output
Product Overview

The K series gear reducer is a specialized gear system designed to decrease motor speed and enhance output torque. This mechanism employs advanced gear meshing with a sophisticated design and innovative retarding structure.

Key Applications
  • Food processing machinery
  • Construction equipment
  • Woodworking machinery
  • Conveyor systems
  • Agricultural machinery
  • Cranes and mineral processing equipment
Product Features
  • Modular design for easy adaptation to various motor types
  • Enhanced efficiency (over 95%) leading to power savings
  • Cost-effective with minimal maintenance requirements
  • Superior sealing for diverse industrial applications
  • High loading capacity with stable transmission
  • Low noise operation and durable construction
  • Supports power outputs up to 132KW
Product Images
20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V 20CrMnTi Hard Face Helical Gear Reducer Parallel Shaft K97 Series 380V

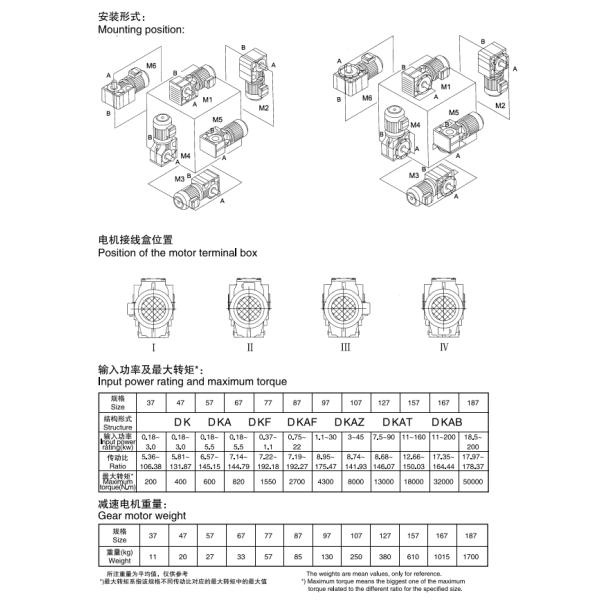

Technical Specifications

The K series gear reducer adheres to international manufacturing standards, featuring space-efficient construction with reliability and durability. It offers substantial overload capability with low energy consumption and outstanding performance.
